Crack Stitch

Crack Stitch

Concrete Crack Repair System

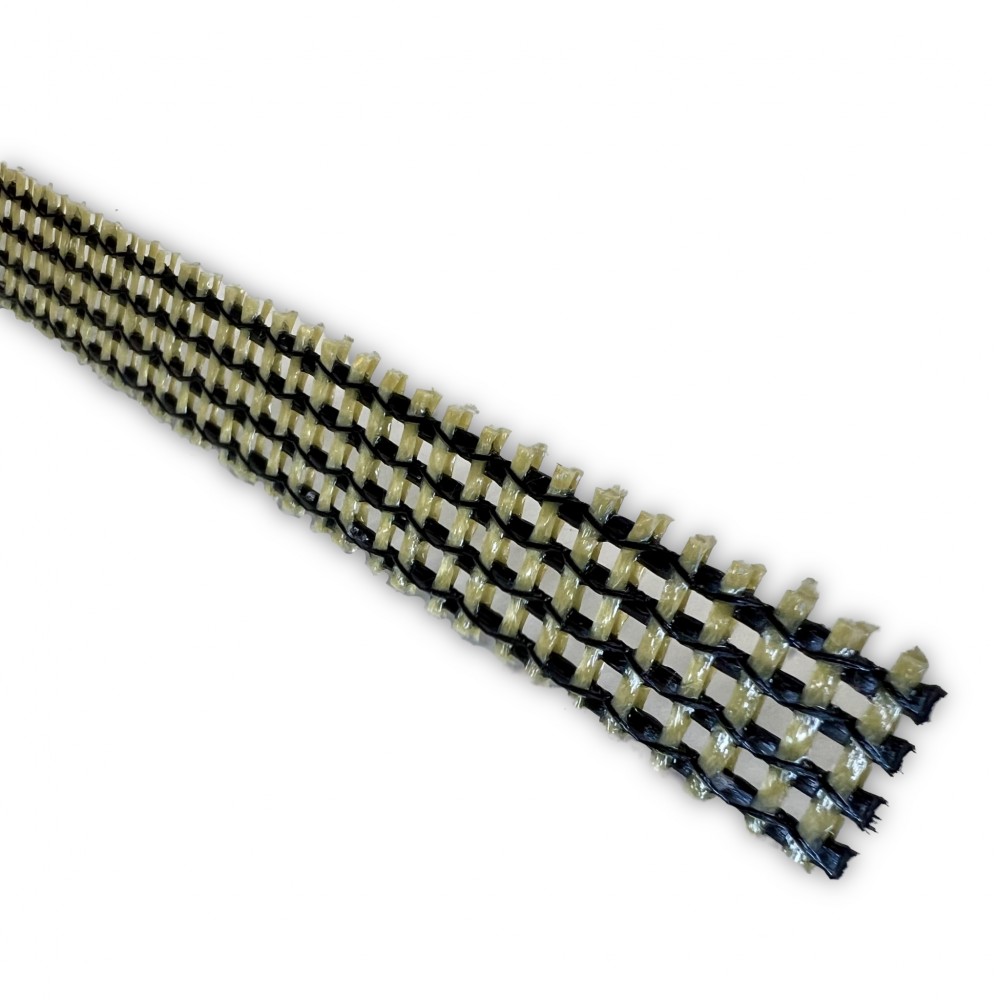

The Crack Stitch® is a pre-impregnated, bi-directional carbon fiber and Kevlar® open grid, fiber reinforced polymer (FRP) composite grid stitch for structurally repairing cracks in concrete.

FEATURES & BENEFITS

● Composite grid design creates mechanical bonding when installed which prevents travel from occurring
● Installed in direct tension with the crack to stop further lateral expansion of the concrete
● Ultra high-strength, pre-cured carbon fiber tows
● Fast and simple installation; no hole drilling required
● Non-corrosive, will not corrode in the future
● Ultimate tensile strength of 6,600 lbs. (45.505 MPa)

Crack Stitch is ideal for:

● Basement wall cracks
● Garage floor cracks
● Sidewalks and driveway cracks
● Basement and foundation slabs floor cracks
● Basketball court and tennis court cracks
● Any cracks in poured concrete, block, masonry, or brick!

Crack Stitch Spacing:

100mm Slab thickness = 200mm spacing

150mm Slab thickness = 150mm spacing

200mm Slab thickness = 114mm spacing
